Product Description:

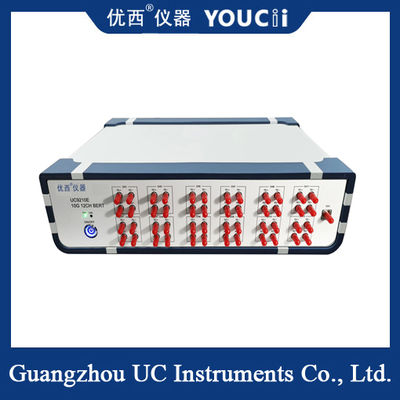

As a high-performance device in the field of communication testing, the 15G 12-channel electrical port bit error rate tester, with its extensive support for full rates ranging from 622M to 15G, has become a core tool for signal integrity verification in multiple scenarios. 12-channel parallel testing capability enables simultaneous multi-link bit error rate analysis. The electrical port design is compatible with various electrical signal transmission systems, ranging from traditional 622M devices to 15G high-speed new infrastructure scenarios. It can accurately complete bit error rate (BER) tests, providing a "one-stop" reliability guarantee for communication equipment research and development, production line verification, and network operation and maintenance.
Features:
- Product Name: BERT Tester
- Data output jitter (RMS): 1.5 (10.3125G Down)ps
- Rise and fall time (20% to 80%): 18~23ps
- Model: U9210E
- Material: Metal
- Data rate: 622M Up To 15Gbps
Technical Parameters:
| No. |
parameter
|
minimum
|
typical
|
maximum
|
unit
|
| 1 |
Data rate
|
0.622 |
0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 |
15 |
Gbps |
| 2 |
Code type
|
|
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 |
|
|
| 3 |
Rise and fall time (20% to 80%)
|
|
18 |
23 |
ps |
| 4 |
Pattern reversal
|
|
Supports signal reversal at the receiving end
|
|
|
| 5 |
Signal output amplitude (single-ended)
|
200 |
800 |
1000 |
mV |
| 6 |
Data output jitter (RMS)
|
|
1.5 (10.3125G down)
|
|
ps |
| 7 |
Data input/output interface
|
|
Differential, AC coupling, 50 ohm impedance, SMA
|
|
|
| 8 |
Clock output
|
100 |
156.25 |
156.25 |
MHz |
| 9 |
Data signal input sensitivity (single-ended)
|
|
0.1 |
|
Vpp |
| 10 |
Data output eye graph intersections
|
50 |
52 |
54 |
% |
| 11 |
Operating temperature
|
10 |
25 |
50 |
°C |
Applications:
One of the key product application occasions for the YOUCii U9210E BERT Tester is in the testing and validation of high-speed communication systems. Its ability to support data rates from 622M up to 15Gbps makes it suitable for testing a variety of modern communication protocols and interfaces.
Another common scenario where the YOUCii U9210E BERT Tester excels is in research and development labs where engineers and technicians need to evaluate the performance of new networking technologies. The BERT Tester can simulate real-world conditions and analyze the quality of signals transmitted through different channels.
Moreover, the YOUCii U9210E BERT Tester is ideal for manufacturing environments where production lines require comprehensive testing of data transmission components. Its accuracy and reliability ensure that products meet stringent quality standards before they are released to the market.
Whether in the telecommunications industry, semiconductor testing, or high-speed data center applications, the YOUCii U9210E BERT Tester proves to be a valuable tool for engineers and technicians. Its origin in China guarantees high-quality manufacturing standards, while its advanced features and capabilities make it a preferred choice for testing and validation processes.
