Product Description:
The BERT Tester is a high-quality testing instrument designed for accurate and reliable signal analysis in various electronic applications. Crafted with durable metal material, this BERT Tester ensures long-lasting performance and robustness in demanding testing environments.
Equipped with advanced technology, the BERT Tester delivers exceptional data output jitter control with an RMS value of 1.5ps at 10.3125G Down, ensuring stable and consistent signal integrity for accurate test results.

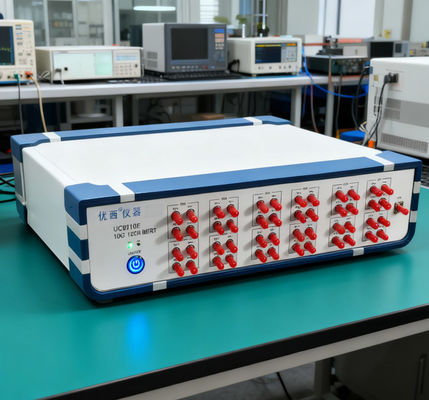

The U9210E model of the BERT Tester is renowned for its superior performance and reliability in analyzing data rates ranging from 622M up to 15Gbps. This versatile model offers a wide range of testing capabilities, making it suitable for a variety of electronic testing applications.
Technical Parameters:
| No. |
parameter
|
minimum
|
typical
|
maximum
|
unit
|
| 1 |
Data rate
|
0.622 |
0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 |
15 |
Gbps |
| 2 |
Code type
|
|
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 |
|
|
| 3 |
Rise and fall time (20% to 80%)
|
|
18 |
23 |
ps |
| 4 |
Pattern reversal
|
|
Supports signal reversal at the receiving end
|
|
|
| 5 |
Signal output amplitude (single-ended)
|
200 |
800 |
1000 |
mV |
| 6 |
Data output jitter (RMS)
|
|
1.5 (10.3125G down)
|
|
ps |
| 7 |
Data input/output interface
|
|
Differential, AC coupling, 50 ohm impedance, SMA
|
|
|
| 8 |
Clock output
|
100 |
156.25 |
156.25 |
MHz |
| 9 |
Data signal input sensitivity (single-ended)
|
|
0.1 |
|
Vpp |
| 10 |
Data output eye graph intersections
|
50 |
52 |
54 |
% |
| 11 |
Operating temperature
|
10 |
25 |
50 |
°C |
Applications:
When it comes to high-quality testing and analysis of digital communication systems, the YOUCii BERT Tester U9210E is the perfect solution. Designed and manufactured in China, this advanced tester is ideal for a wide range of product application occasions and scenarios thanks to its impressive features and capabilities.
The YOUCii BERT Tester U9210E is widely used in the telecommunications industry, data centers, research labs, and manufacturing facilities. Its data rate of 622M up to 15Gbps makes it suitable for testing a variety of high-speed communication systems, ensuring optimal performance and reliability.
